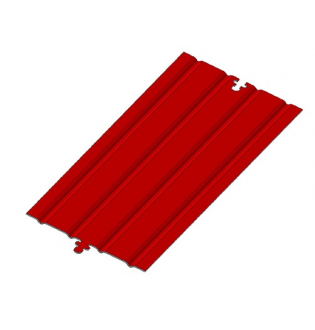

Cable plates KAD

KAD cover panels offer mechanical protection for underground cable and pipe systems, replacing brick, tile and concrete block cable protectors. Compared to older cable protection technology, the KAD panels allow the user to easily and positively identify the protected cables.

Description

KAD cover panels are made:
 from recyclable PVC material or LDPE, HDPE
with reinforced lengthwise grooves
in widths from 125 mm to 300 mm (+/- 2 mm)
in thicknesses from 2.0 mm to 4.0 mm (+/- 0.2 mm) - panel length 1 m (+/- 3 mm)
with lengthwise connection locks
in a variety of colours according to use (red, blue, yellow)
content description printed in black

Properties

KAD cover panels are characterized by the following properties:
lifetime of at least 30 years when installed underground
high level of elasticity
temperature range for handling from -25°C to up to 60°C - Content description does not wear or fade over the entire lifetime of the product
non-absorbent, inert and fully recyclable


Name Order number Palette
(m)
Dimension
(mm)
KAD 120 - 2 / 3 / 4 350 120 S0T XYZ* * 120
KAD 125 - 2 / 3 / 4 350 125 S0T XYZ* * 125
KAD 150 - 2 / 3 / 4 350 150 S0T XYZ* * 150
KAD 170 - 2 / 3 / 4 350 170 S0T XYZ* * 170
KAD 200 - 2 / 3 / 4 350 200 S0T XYZ* * 200
KAD 250 - 2 / 3 / 4 350 250 S0T XYZ* * 250
KAD 300 - 2 / 3 / 4 350 300 S0T XYZ* * 300


* the right ordering code of plate is specified by configurator, S- type of material (i.e. 0 - PVC). T - thickness (i.e. 2 - 2 mm), X - lenght (i.e. 0 - 1m), Y - description (i.e. 0 - CAUTION ELECTRIC CABLE!), Z - colour (i.e. 0 - RAL3000)
